Run Lua Action

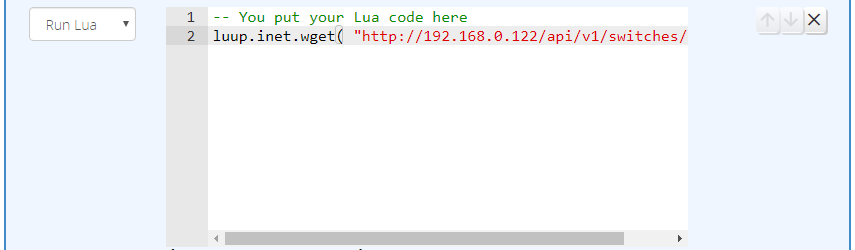

The Run Lua action allows you to run a Lua script. This works the same way as scene Lua, except that you can use the RunLua action as often as you want, where you want, not just at the beginning of the activity.

Run Lua Action

Like scene Lua, if your script returns boolean false, execution of the actions in the activity stops at that point. If anything other than boolean false is returned (including nothing), execution continues.

All Plugins are Sandboxed

Because Reactor is a plugin, and Vera runs plugins in different sandboxes (environments) from other plugins and startup Lua, globals defined outside of Reactor are not visible to Lua in Reactor. If you have a library of functions you define in your startup Lua, you can convert this code to a Lua module, which can then be used in startup Lua, scene Lua, Reactor Run Lua actions, or anywhere else. See "Converting Startup Lua to a Module" below.

You're doing it wrong!

If you are using a Run Lua action to just call luup.call_action(...) on a device, you should rather use a Device Action — the Run Lua action has considerable overhead in compiling the Lua fragment, and building and running the Lua environment. The Device State condition is far more efficient for such a simple purpose.

Reactor Context

Your script environment will have a global table named Reactor that contains information about the context in which your script is executing. The following subkeys are available in this table:

  • id - The device ID of the ReactorSensor in which the script is executing.
  • conditions - A read-only table containing status objects for all groups and conditions in this ReactorSensor. See below.
  • trip - A read-only table containing status objects for those groups which last caused the ReactorSensor to trip;
  • untrip - A read-only table containing status objects for those groups which last caused the ReactorSensor to untrip;
  • script - The internal name of the running script (for debug purposes);
  • variables - A read-only table containing the current values of all expression/variables defined in the ReactorSensor (so you don't need to use luup.get_variable() to access them). Note that this table's elements are read-only, so you cannot set ReactorSensor variables by making assignments to them here.
  • dump( var ) - A utility function you can use to return a formatted string representation of a value (e.g. for use in a print() or luup.log() call); this function stringifies tables in a JSON-like way, so you can see the contents of the table structure rather than Lua's default (not-very-informative) presentation "table: 0x14e123". For fun, try print(Reactor.dump(luup.devices)) to see a dump of all your device data in the Logic Summary (hint: put the output through jsonlint.com to get a pretty-printed version that humans can more easily read -- it's not JSON, but jsonlint.com still does a nice job of formatting it).

The Reactor.conditions table, which is indexed by condition ID (e.g. it's a dictionary or map in some languages), contains a condition state object for every condition. Groups are themselves conditions (which happen to contain other conditions), so they also appear in this table. Each element of this table contains the id of the condition, its type, its current state, the time since that state took effect, and the parent group to which the condition belongs.

  • When the type value is "group", the key conditions is an array of the child conditions of the group, name is the name of the group, op is the group operator (and, or, xor, etc.), and disabled is true if the group is currently disabled.
  • Otherwise, the entry will contain keys lastvalue and priorvalue which are the most recent and prior value of the condition test value.

Reactor.groups Deprecated as of 3.9

The Reactor.groups table, which is similar in structure to the conditions table but lists only groups, has become redundant. The same information can be accessed through Reactor.conditions. As a result, Reactor.groups is now deprecated and will be removed from a future release. Use Reactor.conditions instead; it works the same way, so you should just be able to change the name. See the examples below.

Context Usage Examples

Print the name of the "root" group:

print("Root group name is", Reactor.conditions.root.name)

Print a message for each condition in a group with ID grp_jednkh that is not true:

for id,cond in ipairs( Reactor.conditions.grp_jednkh.conditions ) do
    if ( not cond.state ) then
        print("Condition", cond.id, "is false!")
    end
end

Print the name and state of the group that is the parent of condition cond_jednkh:

local group = Reactor.conditions.cond_jednkh.parent
print( group.name, "is", group.state )

Error Logging

The "Event Log" section of the Logic Summary for your ReactorSensor (which can be generated from its "Tools" tab) will contain messages for errors thrown by your code, as well as any print() statements in your code.

Tip

Using the print() function in your Lua code makes debugging much easier than logging to the LuaUPnP log file!

Other Run Lua Environment Features

The Run Lua environment shares loaded modules between scripts, so if two of your scripts, whether in the same ReactorSensor or different, require a module, that module is loaded only once. This makes the environment more memory-efficient.

The Run Lua environment also contains code to warn you if your script accesses an undeclared variable, or if it creates a variable without the local declaration (i.e. creates a global variable). Global variables are generally to be avoided when possible.

Enhanced Editor

Reactor attempts to load the ACE syntax-highlighting editor in the Activities tab for editing Run Lua code. If you do not want to use ACE, you can set the LoadACE state variable in the Reactor master device to 0.

You can control the version of ACE that is used, and the source from which it is loaded, by setting the ACEURL state variable on the Reactor master device to a full URL of any version of ACE you wish (including code stored on LAN-local servers, so Internet access is not required).

You can also control options that are passed to ACE, such as theme. You can set these options by providing a JSON-formatted options structure in the AceOptions state variable.

Converting Startup Lua to a Module

Please refer to this thread: https://community.getvera.com/t/undeclared-uninitialized-errors-in-lua-activities/200650/4
